Although the advent of the new coronavirus epidemic has hit the global economy, the home office and online teaching caused by the home epidemic prevention measures in various countries around the world have increased rapidly.
Whether you are working from home or studying online, you need to connect to the data center and public cloud services.
Connectivity becomes as important as water and electricity.
It drives the demand for the computer and server market.

In this disastrous Q1 2020, some chip manufacturers realized revenue growth...

According to the statistics of market research organization Omdia, the overall semiconductor industry revenue showed a slight decline in the first quarter of 2020, but the total revenue of the top ten chip suppliers in the world still achieved a growth of about 2%; including Intel , Samsung, Micron and other leaders, in the first quarter of 2020 revenue totaled 63.6 billion US dollars, an increase of 1.4 billion US dollars from the previous quarter.

When there is a challenge, there is a chance for electronics component field.

7. Crystals: Crystals and Oscillators size 1612 to 7050,Tuning Fork 32.768KHz

MuRata will stop offer trimmer capacitors after 2021 March, maybe it is not a good new for some customer who support product by MuRata. Some product of TZY2 series, which is small and thin size with external dimensions of 2.5(W) x3.2 (L) x1.25max(H)mm, have been discontinued (remark:red). Blue-label products will be discontinued as below.

If you change your PCB pattern size, Kingtronics KKT series suit for you, which is small size with external dimension of 3.2(W) x 4.5(L) x 1.5(T) mm. New shape of cover can improve the adhesion between rotor and stator leads to superior stability. It is suitable for high frequency circuit due to high self-resonant frequency. We can be your best support for KKT series with regular stock, competitive price, RoHS qualification, few samples!

It designed for reflow soldering and application for crystal oscillators, crystal filters, radar detectors, stylus pen, compact radios, hand radios, burglarproof devices, headphone stereos, and remote keyless entry systems

Time flys, one year will end soon, and we embrace the new year with more expectation.

Similar situation will be staged, it's time to prepare new order for Christmas stock, kindly feel free to inform our sales your Dec. demands and new year forecast. All of our team is willing to perform better and expand business positively, thus more considerate support will be provided accordingly.

No more wait, no more hesitation, just follow your heart on business expansion, we are at your service and backing you up all the time.

Normally best L/T, exact one can be negotiated on exact order list:
Regular stock:  diode M7, LL4148;  trimming potentiometer RKT-3296W, RKT-3386F
3-5weeks:  trimming potentiometer,  diode/bridge/transistor,  radial/axial/smd multilayer ceramic capacitor,  crystal oscillator
4-8weeks:  aluminum electrolytic capacitor,  dipped/smd tantlaum capacitor

Usually we know crystals are referring to Quartz Crystal Resonator and Crystal Oscillator , so what is the basic difference of these two types of crystals?
Today, we would like to distinguish them from their structure. Please follow us with below blog.

Active Crystal Oscillator : Metal Lid, Quartz Blank, Coated Electrode, IC, Ceramic Base, Solder Pads.
Passive Quartz Crystal Resonator : Metal Lid, Quartz Blank, Coated Electrode, Ceramic Base, Solder Pads.

So do you find the difference ? The main point is that Crystal Oscillator is with an IC part . We are sure that you will have a better idea after you read below picture.http://www.kingtronics.com/quartz-crystals/index.html

When you order Crystal Oscillator, you have to at least keep 5 essential aspects.
Package Type,  Frequency, Suply Voltage, Frequency Tolerance,Operating Temperature

Examples :
QKT-OSC3225, 32.768KHz,  1.8V, +/-10ppm, -10℃~+60℃
QKT-OSC5032, 32.768KHz,  3.3V, +/-20ppm, -20℃~+70℃
QKT-OSC7050, 32.768KHz,  5.0V, +/-20ppm, -40℃~+85℃

Free samples are available and welcome your enquiry and test our samples.

If you need more products information, please check :
www.kingtronics.com/quartz-crystals/QKT-HC49SMD.html

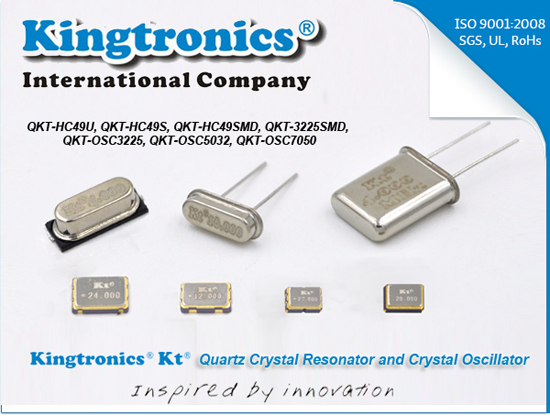

Kingtronics offers passive leaded quartz crystal HC49U, HC49S, SMD quartz crystal HC49SMD and 3225 SMD Crystals.
We also produce active 3225, 5032, 5070 SMD Oscillators.

The passive quartz crystal are ideally suited designed for Bluetooth wireless communication sets, HDD, DSN, PDA,GPS,Digital Tuner, Wireless LAN and mobile phones.
The Active SMD Oscillators are ideally suited for disc-drives, NB, Networking, GPS/Navigation, BlusTooth, Ethernet, ADSL, VDSL, Fiber chaneel hand-held electronics products.
Kingtronics rapid response and in depth technical support is exceptional. You will find our highly skilled, experienced sales representatives satisfactory.

If you need more products information, please check :
www.kingtronics.com/quartz-crystals/QKT-HC49U.html

Quartz Crystal Resonator Widely used in :Communications, such as ADSL, routing, Intercom, IP telephone, WiFI, GPS, RF module,etc.;
Security, such as monitoring cameras, Entrance guard systems, anti-theft devices, etc.;
Consumers, such as car stereos, DVB, smart metering, remote control toys, MP3, MP4, wireless microphones, digital frame, card reader, etc.

Crystal Oscillator Widely used in : Bluetooth Module, RFID module, RF Wireless Remote Control Module,Mobile Phones, Computers, Stereos, Remote Control Toys;
Communications Equipment, GPS, car GPS,Security, Security Cameras, Medical Devices, Electronic Instruments.

If you need more products information, please check :
www.kingtronics.com/quartz-crystals

Kingtronics offers high quality SMD crystal oscillator at incredibly aggressive prices.
The SMD Crystal Oscillator OSC7050 series is an industry standard crystal oscillator package.
OSC7050 is a low cost, low profile timing option for applications where cost is critical.

The OSC7050 is available in tight tolerances and stabilities for demanding applications.
With a broad frequency range from 1.000MHz to 150.000 MHz, the OSC7050 can serve as a low cost solution in virtually any application or market.
The OSC7050 is available in SMD packaging only.

※Notes: The supply voltage 1.8V,2.5V,2.85V also can be made by customer request.

If you need more details, please check :
www.kingtronics.com/quartz-crystals/QKT-OSC7050.html

Kingtronics offers high quality SMD crystal oscillator at incredibly aggressive prices.
The SMD Crystal Oscillator OSC5032 series is an industry standard crystal oscillator package.
OSC5032 is a low cost, low profile timing option for applications where cost is critical.

The OSC5032 is available in tight tolerances and stabilities for demanding applications.
With a broad frequency range from 1.000MHz to 125.000 MHz, the OSC5032 can serve as a low cost solution in virtually any application or market.
The OSC5032 is available in SMD packaging only.

※Notes: The supply voltage 1.8V, 2.5V, 2.85V also can be made by customer request.

If you need more details, please check :
www.kingtronics.com/quartz-crystals/QKT-OSC5032.html

Kingtronics offers high quality SMD crystal oscillator at incredibly aggressive prices.
The SMD Crystal Oscillator OSC3225 series is an industry standard crystal oscillator package.
3225SMD is a low cost, low profile timing option for applications where cost is critical.

The OSC3225 is available in tight tolerances and stabilities for demanding applications.
With a broad frequency range from 1.000MHz to 125.000 MHz, the OSC3225 can serve as a low cost solution in virtually any application or market.
The OSC3225 is available in SMD packaging only.

※Notes: The supply voltage 1.8V, 2.5V, 2.85V also can be made by customer request.

If you need more details, please check :
www.kingtronics.com/quartz-crystals/QKT-OSC3225.html
